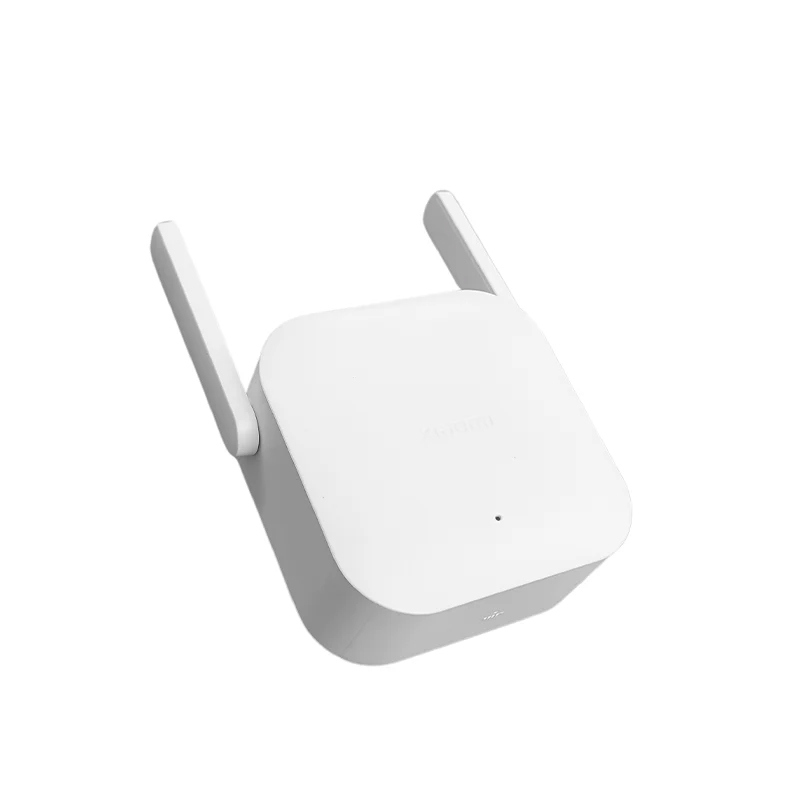

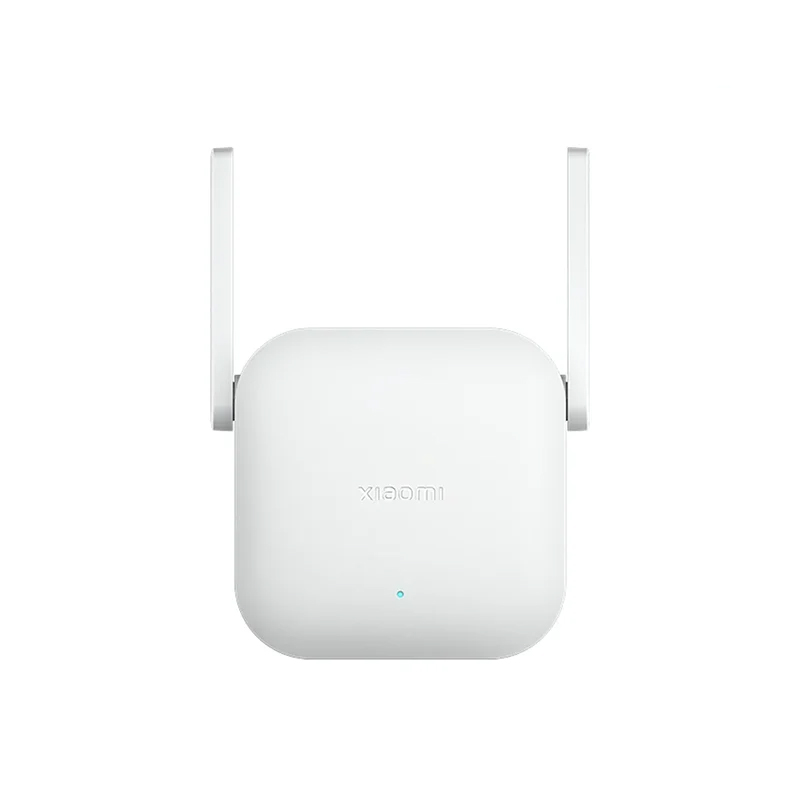

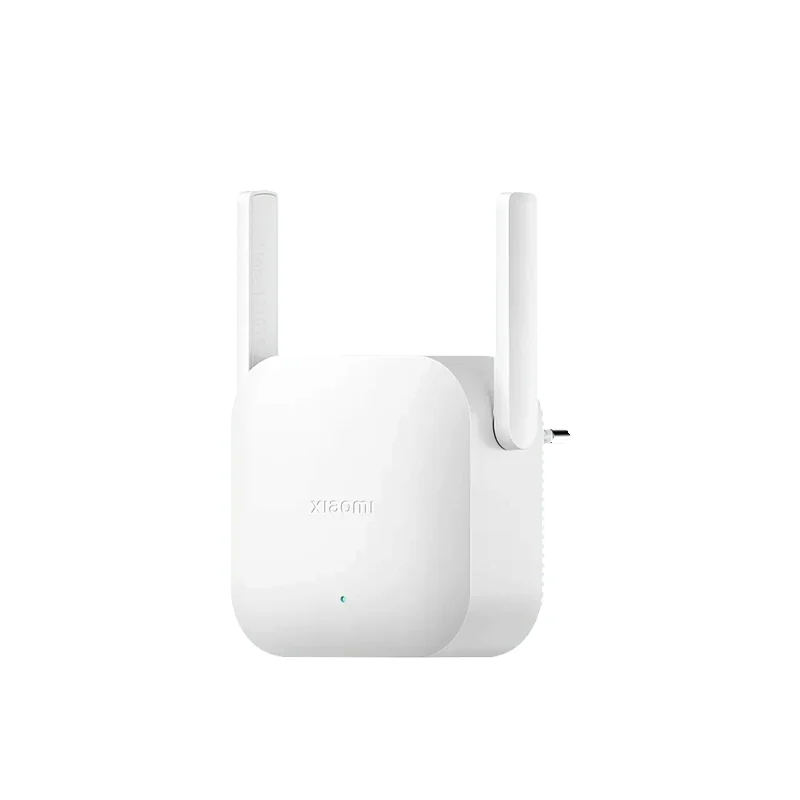

Technical Specification for the Xiaomi WiFi Range Extender N300
Technical Specifications
- Product Model: RD10/RD10M
- Dimensions: 80x54x70mm
- Antenna Type: 2 external antennas
- Wireless Standards: IEEE 802.11b/g/n
- Signal Rate: 2.4GHz, up to 300Mbps
- Wireless Security: WPA-PSK/WPA2-PSK encryption
- Power Supply: 100-240V/0.35A
Operating Environment
- Operating Temperature: 0-40°C
- Operating Humidity: 10%-90%RH (non-condensing)
- Storage Temperature: -40-70°C
- Storage Humidity: 5%-90%RH (non-condensing)
- Power Consumption: 3.57W
Package Contents
- Xiaomi WiFi Range Extender N300
- Warranty notice
- User manual
Installation Method 1 (For Mi Routers with MiNET support)
- Place the extender near the Mi router and wait for the yellow light to flash after powering on.
- Click the MiNET button on the router and wait to access it.
- Once set up successfully, the blue light on the extender will stay on. You can then move the extender to another location.
Installation Method 2 (For non-Mi Routers)
- Place the extender close to the router and wait for the yellow light to flash after powering on.
- Download the Mi Home App, open it, click '+' to add the extender, and follow the prompts.
- After successful setup, the blue light will stay on. You can then move the extender to another location.
